Introduction

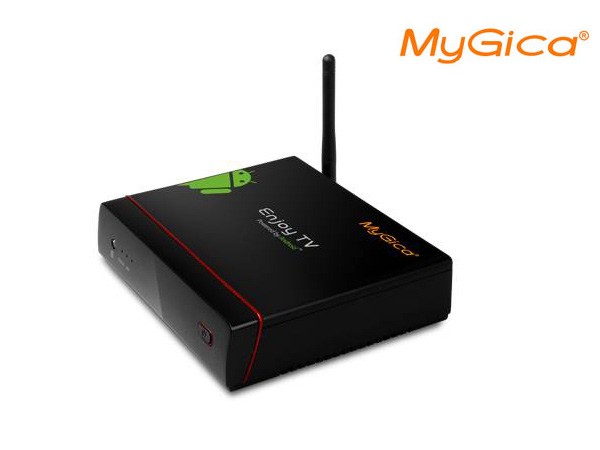

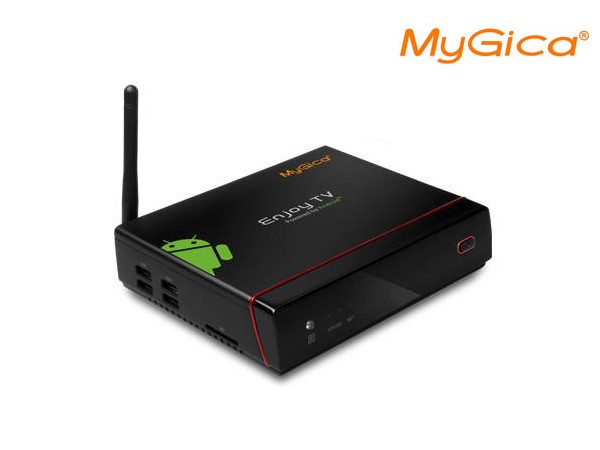

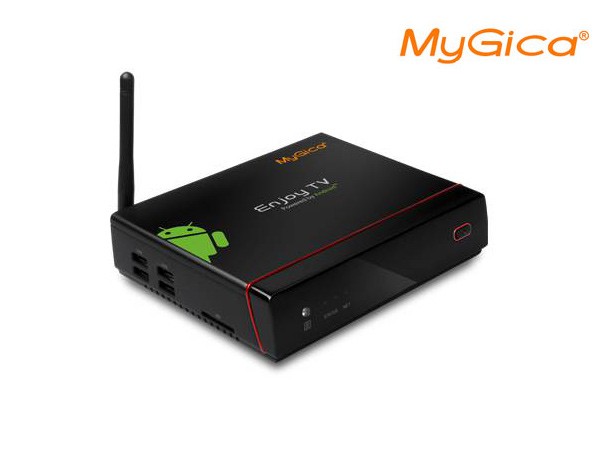

MyGica ATV1200, also called Dual core Android TV box, is a box connected to your TV HDMI input that turns your TV into a multifunction smart TV: a media player, an internet browser with a big view, a photo viewer, a game player, a music player, a huge size screen E-book / E-magazine/newspaper reader, an online video TV, and it is a revolutionary entertainment on your TV.
- It provides a new family television entertainment experience.
- TV is smart from now on.
- The box is using ARM Dual CORTEX A9 CPU, based on the Android 4.1 operating system.
- Supporting Google Chrome browser, wire and wireless networking access, USB external hard disk, and single hand keyboard, mouse as well as easy like a normal Remote Control.
Feature List
• ARM CORTEX A9 x 2, frequency is 1.5GHz, RAM is 1G,built-in 2G-32G flash memory
• Powered by Android 4.1
• Built-in 802.11b/g/n WIFI module, wireless Internet access
• USB interface: support mobile Hard Disk Drive, support mouse and keyboard operation
• RJ45 10/100M Ethernet interface
• Support 1080P High-Resolution Video playback
• HDMI video output, connect to HDTV for HD video playback
• Support weather, calendar, and desktop clock gadgets
• Support USB mouse, keyboard operation,USB Web Camera with Mic, etc.,
• Support 2.4G wireless motion (also called air or sky) remote control
• Support Flash Player 10.2, hardware decoding, Flash 11.1 software decoding, playback online video
• Support music player, picture player, and more family entertainment
• Support SD card, 4 USB ports, and Google Chrome browser
• AppInstaller for application installation from USB/SD
Product:
Dual Core Android TV Box MyGica ATV1200
• CPU: Dual Core ARM Corte x A9
• GPU: Mali-400MP2 Dual Core
• Frequency: 1.5GHz
• RAM: DDR3 1GB
• Storage: NAND Flash 8GB Built-in ( Upgradable up to 32GB )
• OS: Android 4.2
Main Function

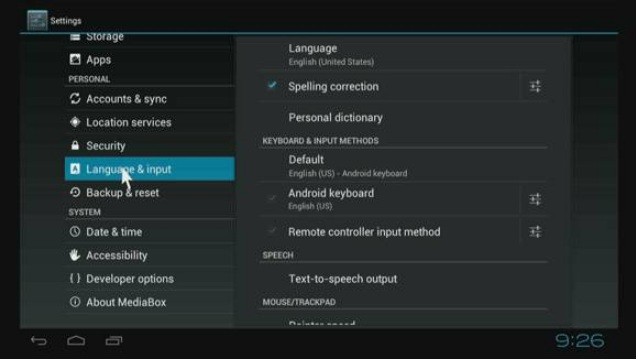

• UI: Android 4.1 system UI style
• Browser: Google Chrome
• Media Player: Local video playback including Mpeg1/2/4, H.264,VC-1,WMV,AVI,MKV,MOV etc.
• Online Video: Access to the internet, online video playing
• Music: Local music player including MP3,WAV,WMAetc.
• Online Music: Access to the internet, online music playing
• Picture Viewer: Support BMP, JPG,TIF, PNG,GIF format
• Software Update: Support SD card for software updating
• External Storage: SD/SDHC card, USB storage support

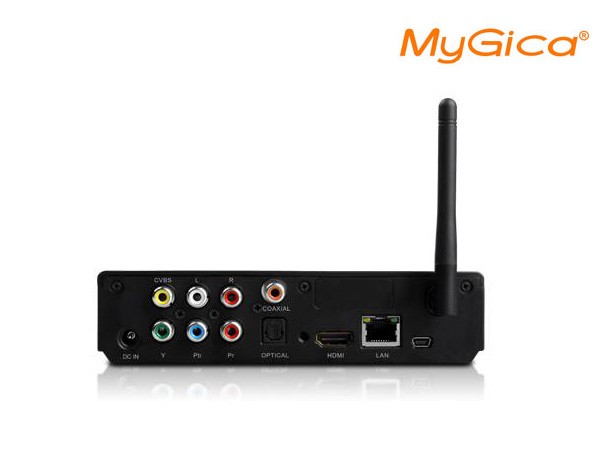

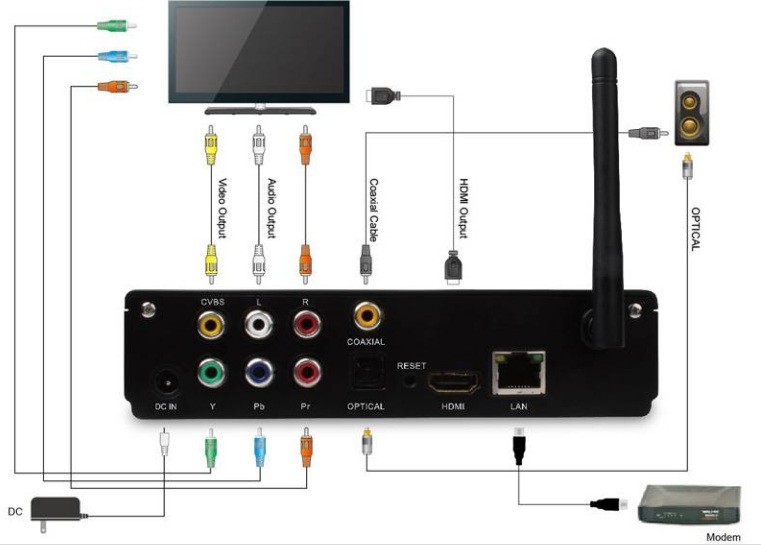

• Interface definition and parameter

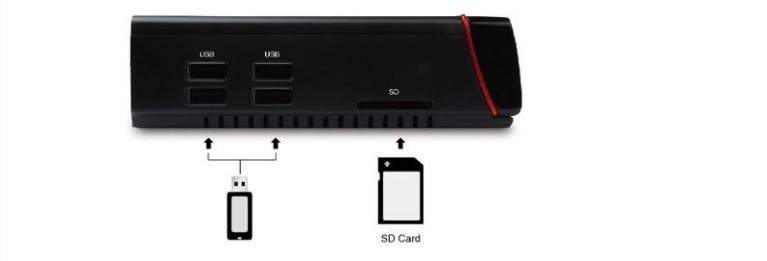

• USB: Support 4 x external USB HOST and 1 x internal USB
• SD card: 1xSD slot
• Connect: Rj45 Wired internet connection
• Output: HDMI 1.4a output
• Remote control: 2.4G motion mouse with QWERTY keypad
• Voltage: 12V/1.5A DC
• Resolution: 1920*1080
• Power Consumption: 12V/1.5A DC
Accessories
ATV1200 dual core MyGica Android TV box x 1
AV Cable x 1
WiFi Antenna ( inbuilt ) x 1
HDMI Cable x 1
Manual x 1
Power Adapter ( Input 100-230v AC -50Hz/60Hz 0.5A max - Output 12 V DC 1500mA ) x 1
IR Remote Control x 1
